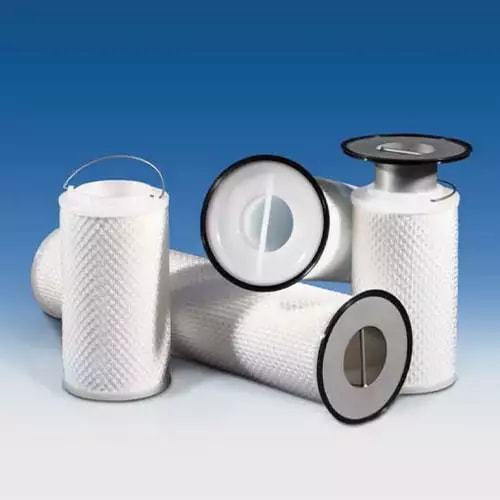

Marksman™ Large Format Filters PFTM401UNF
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Not applicable
- Removal Rating: 20 µm
- Removal Efficiency: Nominal
- Nominal Outer Diameter: 6 in 152 mm
- Nominal Length: size 1 Bag
- Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
- Maximum Temperature: 60°C (140°F)
- Clean Differential Pressure: 0.17 bar (2 psid)
Description
The Marksman PFTM401UNF is a polypropylene filter cartridge rated at 40 µm for coarse particulate removal in size 1 bag vessels. Built without flange, it is designed to operate with reusable flange assemblies. The filter uses an inside-out flow configuration to trap contaminants internally, improving cleanliness and extending downstream filter life.
