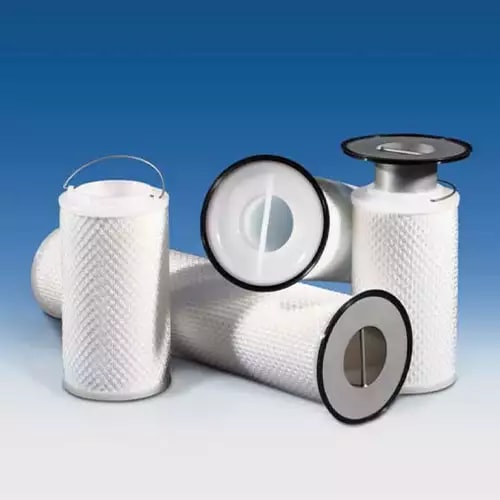

Marksman™ Large Format Filters PFTM701UEPFA
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: EPDM
- Removal Rating: 70µm
- Removal Efficiency: Absolute
- Nominal Outer Diameter: 6 in 152 mm
- Nominal Length: size 1 Bag
- Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
- Maximum Temperature: 60°C (140°F)
- Dirt Holding Capacity: 0
- Clean Differential Pressure: 0.17 bar (2 psid)
Description
The Marksman PFTM701UEPFA is a 70 µm polypropylene large format filter with an EPDM gasket and a plastic self-adjusting flange. Designed for size 1 bag housings, it combines high dirt capacity with chemical resistance and stable flow performance. Its reinforced construction supports high differential pressure, making it suitable for demanding coarse filtration.
