Marksman™ Large Format Filters PFTM51UNF
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Not applicable
- Removal Rating: 5µm
- Removal Efficiency: absolute
- Nominal Outer Diameter: 6 in 152 mm
- Nominal Length: size 1 Bag
- Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
- Maximum Temperature: 60°C (140°F)
- Dirt Holding Capacity: 0
- Clean Differential Pressure: 0.17 bar (2 psid)
Description

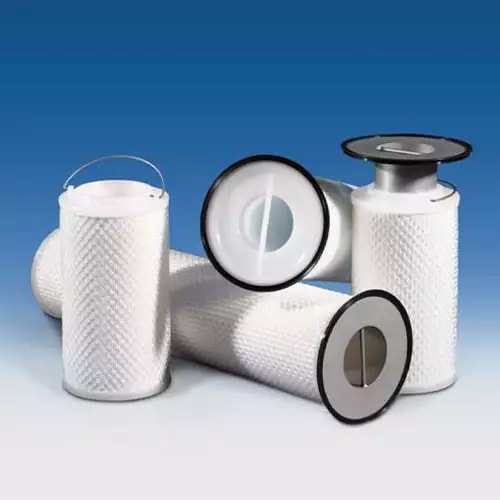

The Marksman PFTM51UNF is a 5 µm polypropylene large format filter designed to fit size 1 bag vessels without hardware modifications. Built with a no-flange configuration, it is compatible with reusable stainless steel flanges. Inside-out flow traps contaminants within the element, extending filter service life and maintaining clean process streams.
