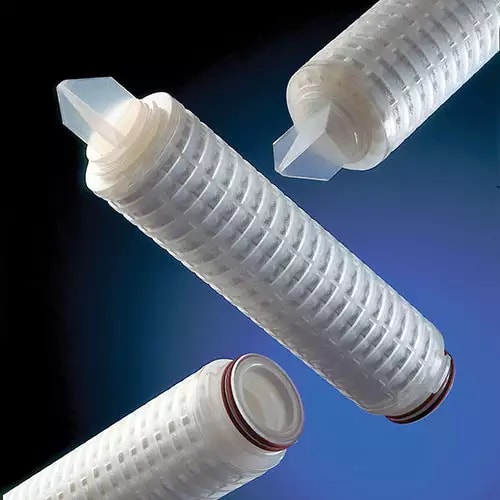

Profile® Star Filters, AB1A0157WH4

Call for pricing
Part Number
  • AB1A0157WH4
Highlights...

Features

  • Media Material: Polypropylene
  • Hardware Material: Polypropylene
  • O-ring/Seal/Gasket Material: Silicone Elastomer
  • Removal Rating: 1.5 µm
  • Removal Efficiency: 99.98 %
  • Nominal Length: 254 mm (10 in)
  • Configuration (SOE/DOE/Code7/Code3): SOE - single open end with fin end, 2 locking tabs and external 226 O-rings
  • Maximum Differential Pressure: 5 bard (72 psid) @ < 50° C (122◦ F)
  • Hot Water Sanitization: 80 °C (176 °F)
  • Integrity Testable: No bubble test
The Profile Star AB1A0157WH4 is a 10-inch pleated depth filter designed for high particle removal efficiency. It features a 1.5 µm polypropylene medium, rated at 99.98% efficiency, that combines a graded-pore structure with a unique star pleat geometry. This increases the effective filtration area, providing a long service life and high flow capability, while the depth of the medium ensures excellent removal of soft contaminants like gels. The fixed-fiber matrix provides a stable structure for consistent filtrate quality. This element has a Code 7 adapter and silicone O-rings for a secure, sanitary installation. Need more information? View all details for this Product Family!
