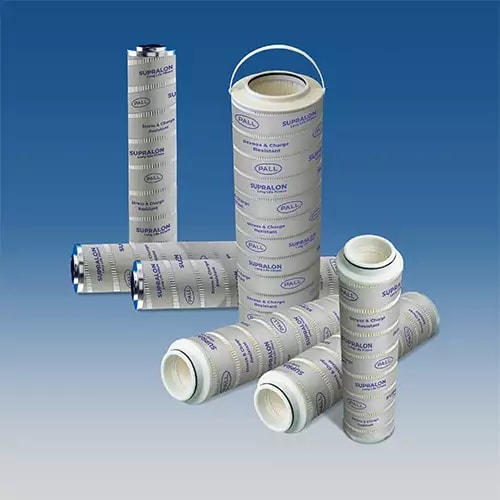

Marksman™ Large Format Filters PFTM52UNPFA

$416.53
Part Number
  • PFTM52UNPFA
Highlights...

Features

  • Media Material: Polypropylene
  • Hardware Material: Polypropylene
  • O-ring/Seal/Gasket Material: Nitrile
  • Removal Rating: 5µm
  • Removal Efficiency: absolute
  • Nominal Outer Diameter: 6 in 152 mm
  • Nominal Length: Size 2 Bag
  • Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
  • Maximum Temperature: 60°C (140°F)
  • Dirt Holding Capacity: 0
  • Clean Differential Pressure: 0.17 bar (2 psid)
The Marksman PFTM52UNPFA is a high-capacity, 5 µm nominal polypropylene filter designed for size 2 bag vessels. It features a nitrile gasket and a plastic self-adjusting flange, ensuring a secure, leak-free fit. The pleated, high-surface-area media delivers consistent performance, long filter runs, and reliable fine solids retention, reducing maintenance and downtime. Need more information? View all details for this Product Family!
