Marksman™ PFTM Large Format Filters PFTM4040UHFJ
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Ethylene propylene
- Removal Rating: 20 µm
- Removal Efficiency: Nominal
- Nominal Outer Diameter: 6.3 in 160 mm
- Nominal Length: 40 in 1016 mm
- Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
- Maximum Temperature: 60°C (140°F)
- Dirt Holding Capacity: 0
- Clean Differential Pressure: 0.17 bar (2 psid)
Description

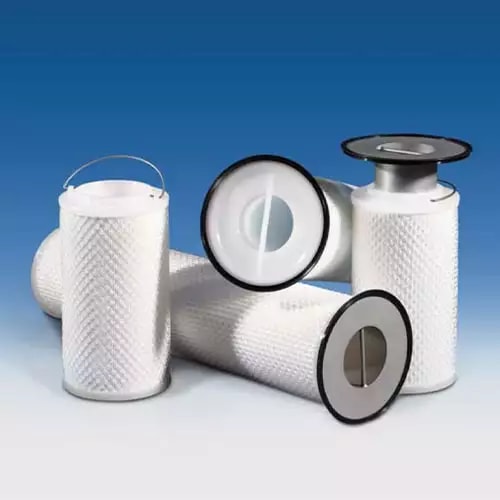

The Marksman PFTM4040UHFJ is a 40-inch high flow polypropylene filter cartridge rated at 40 µm. Featuring an EPDM O-ring and reinforced end caps, it is engineered for large-scale flow systems requiring coarse particulate removal. Its high-capacity pleated media extends service intervals and ensures stable performance in industrial duty.
