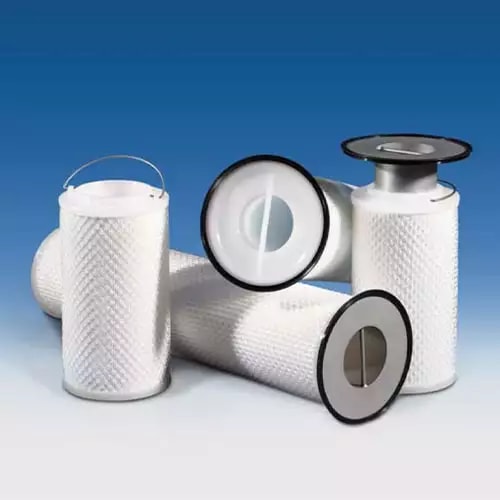

Marksman™ PFTM Large Format Filters PFTM540UHFJ
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Ethylene propylene
- Removal Rating: 5µm
- Removal Efficiency: absolute
- Nominal Outer Diameter: 6.3 in 160 mm
- Nominal Length: 40 in 1016 mm
- Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
- Maximum Temperature: 60°C (140°F)
- Dirt Holding Capacity: 0
- Clean Differential Pressure: 0.17 bar (2 psid)
Description
The Marksman PFTM540UHFJ is a 40-inch, 5 µm polypropylene high flow cartridge engineered for long service intervals in demanding industrial systems. It features an EPDM O-ring for secure sealing in standard high flow housings and a pleated polypropylene design reinforced with 10% glass fiber end caps. Inside-out flow retains solids inside the element to maximize cleanliness and uptime.
