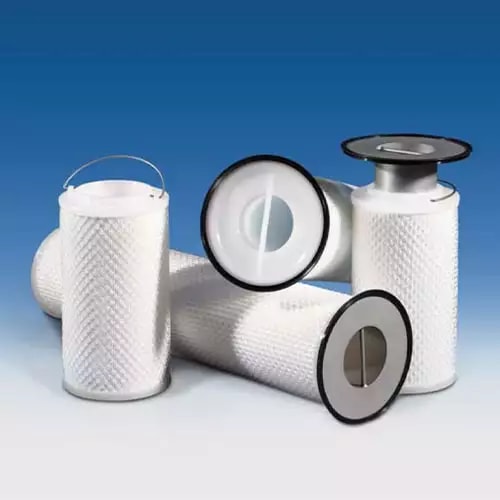

Marksman™ PFTM Large Format Filters PFTM520UHFJ
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Ethylene propylene
- Removal Rating: 5µm
- Removal Efficiency: absolute
- Nominal Outer Diameter: 6.3 in 160 mm
- Nominal Length: 20 in 508 mm
- Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
- Maximum Temperature: 60°C (140°F)
- Dirt Holding Capacity: 0
- Clean Differential Pressure: 0.17 bar (2 psid)
Description
The Marksman PFTM520UHFJ is a 20-inch, 5 µm polypropylene high flow cartridge designed for large-volume fluid systems. Its EPDM O-ring ensures secure sealing in standard high flow housings, while inside-out flow captures contaminants within the element. With Poly-Fine II media, it delivers consistent retention, high capacity, and extended service life.
