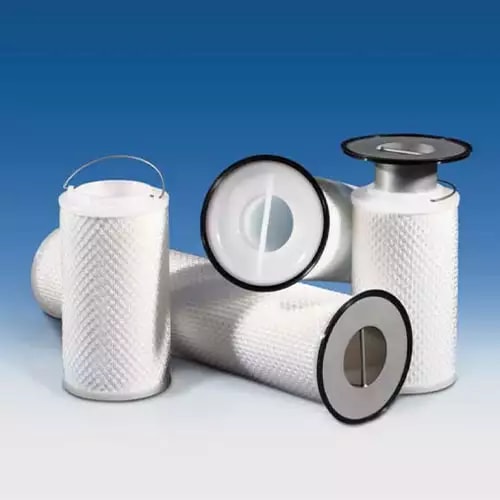

Marksman™ PFTM Large Format Filters PFTM7060UHFH13
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Nitrile
- Removal Rating: 70µm
- Removal Efficiency: Absolute
- Nominal Outer Diameter: 6.3 in 160 mm
- Nominal Length: 60 in 1524 mm
- Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
- Maximum Temperature: 60°C (140°F)
- Dirt Holding Capacity: 0
- Clean Differential Pressure: 0.17 bar (2 psid)
Description
The Marksman PFTM7060UHFH13 is a 60-inch, 70 µm high flow polypropylene filter cartridge engineered for large-scale operations. Its extended geometry and pleated design maximize surface area, while the inside-to-out flow pattern traps contaminants securely within the element. Constructed from all polypropylene materials with a nitrile O-ring seal, it provides high dirt capacity, consistent performance, and wide chemical compatibility.
