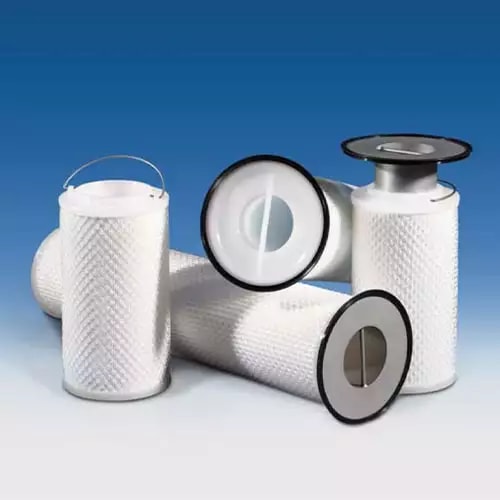

Marksman™ Large Format Filters PFTM1501UNF
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Not applicable
- Removal Rating: 145µm
- Removal Efficiency: absolute
- Nominal Outer Diameter: 6 in 152 mm
- Nominal Length: size 1 Bag
- Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
- Maximum Temperature: 60°C (140°F)
- Dirt Holding Capacity: 0
- Clean Differential Pressure: 0.17 bar (2 psid)
Description
The Marksman PFTM1501UNF is a coarse particulate removal cartridge with a 150 µm nominal rating. Built for size 1 bag housings, it features all-polypropylene construction with a nitrile gasket and a flange-free design compatible with reusable stainless-steel flanges. Pleated media geometry maximizes throughput and extends service intervals.
