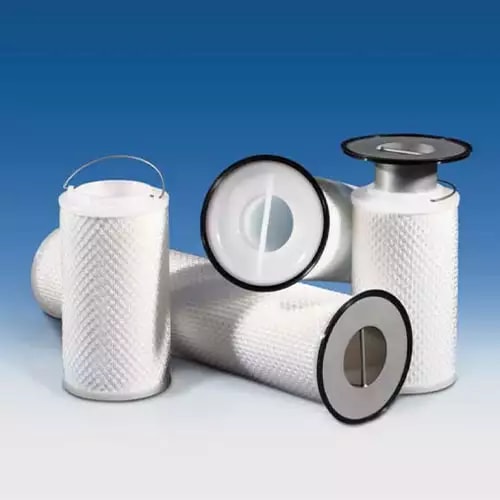

Marksman™ Large Format Filters PFTM702UNF
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Not applicable
- Removal Rating: 70µm
- Removal Efficiency: Absolute
- Nominal Outer Diameter: 6 in 152 mm
- Nominal Length: Size 2 Bag
- Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
- Maximum Temperature: 60°C (140°F)
- Dirt Holding Capacity: 0
- Clean Differential Pressure: 0.17 bar (2 psid)
Description
The Marksman PFTM702UNF is a 70 µm polypropylene large format filter for size 2 bag housings. Built with a no-flange design, it can be paired with reusable stainless steel flanges. Its inside-out flow captures coarse solids inside the element, protecting downstream equipment and extending service intervals.
