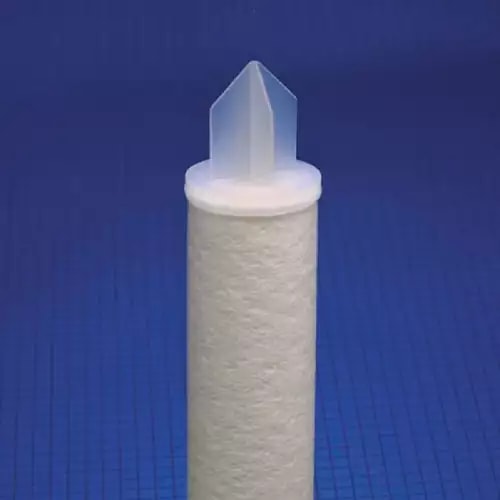

Nexis® Depth Filter NXA540UM8V

$328.73
Minimum Order Quantity of 12 Items.
Part Number
  • NXA540UM8V
Highlights...

Features

  • Media Material: Polypropylene
  • Hardware Material: Polypropylene
  • O-ring/Seal/Gasket Material: Fluorocarbon elastomer
  • Removal Rating: 4,1µm
  • Removal Efficiency: absolute
  • Nominal Outer Diameter: 2.5 in 64 mm
  • Nominal Length: 40 in 1016 mm
  • Configuration (SOE/DOE/Code7/Code3): M8 - SOE fin end, external 222 O-rings (retrofits othermanufacturers’ Code 5)6M8
  • Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
  • Maximum Temperature: 60°C (140°F)
  • Dirt Holding Capacity: 0
  • Clean Differential Pressure: 0.17 bar (2 psid)
The Nexis A NXA540UM8V is a 40-inch, 5 µm polypropylene depth filter cartridge featuring a single-open-end (SOE) fin end with external 222 O-rings (Code 8) and fluorocarbon elastomer seals. Built with Pall's proprietary CoLD Melt gradient pore structure, it achieves >99.9% retention efficiency (ASTM F-795) and resists unloading under differential pressure. Its all-polypropylene construction provides chemical compatibility and long, stable service life in demanding industrial systems.
