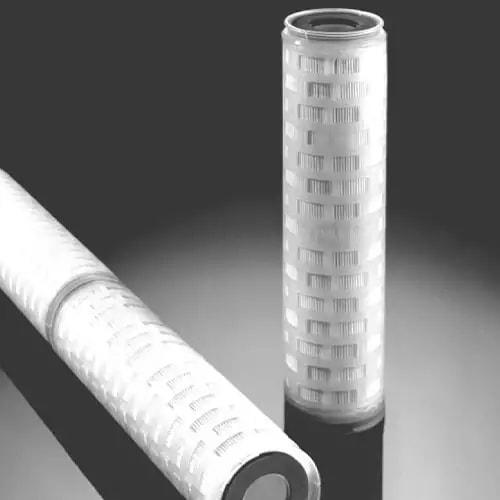

Epocel® Filter Cartridges MCC1401E500H

$733.26
Part Number
  • MCC1401E500H
Highlights...

Features

  • Media Material: resin impregnated cellulose
  • Hardware Material: 316 SS
  • O-ring/Seal/Gasket Material: Viton
  • Removal Rating: 50µm
  • Removal Efficiency: absolute
  • Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
  • Maximum Temperature: 60°C (140°F)
  • Dirt Holding Capacity: 0
  • Clean Differential Pressure: 0.17 bar (2 psid)
The MCC1401E500H is a 5 µm rated Epocel depth filter featuring epoxy-impregnated cellulose media in a pleated high-area design. Engineered for exceptional particulate removal, this cartridge provides stable filtration and high dirt-holding capacity, reducing maintenance. The Viton-A gasket ensures reliable sealing and broad chemical compatibility with aggressive fluids.
