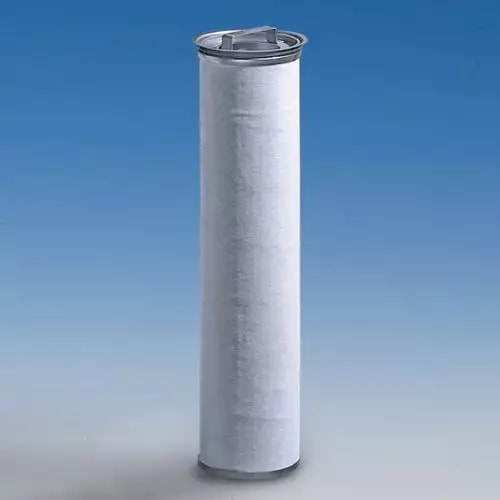

PhaseSep® Coalescers & Separators LCX4H3HH1

Call for pricing
Part Number
  • LCX4H3HH1
Highlights...

Features

  • Hardware Material: Fluorocarbon/Hastelloy C-276 melt-bonded end caps
  • O-ring/Seal/Gasket Material: Fluoropolymer Encapsulated Teflon
  • Nominal Outer Diameter: 3.75 in (9.53 cm)
  • Nominal Length: 40 in (101.6 cm)
  • Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
  • Maximum Temperature: 149 °C300 °F
  • Separation Level (LL Coalescer): ≤15ppm free water content
  • Clean Differential Pressure: 0.17 bar (2 psid)
PhaseSep L/L Coalescer, 40in length, 3.75in diameter, ≤15ppm separation level, 14µm Beta 5000 solids removal rating
