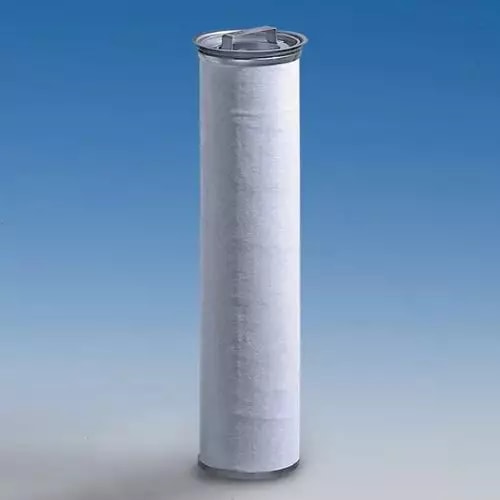

PhaseSep® Coalescers & Separators LCS4H1AH1

Call for pricing
Part Number
  • LCS4H1AH1
Highlights...

Features

  • Hardware Material: Epoxy Potted 304 Stainless Steel
  • O-ring/Seal/Gasket Material: Fluoropolymer Encapsulated Teflon
  • Nominal Outer Diameter: 3.75 in (9.53 cm)
  • Nominal Length: 40 in (101.6 cm)
  • Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
  • Maximum Temperature: 60°C (140°F)
  • Separation Level (LL Coalescer): ≤15ppm free water content
  • Clean Differential Pressure: 0.17 bar (2 psid)
The LCS4H1AH1 is a 40 in coalescer designed to separate liquid/liquid dispersions with an IFT greater than 0.5 dyne/cm. It uses a pleated fluoropolymer medium and a Teflon (FEP) gasket for maximum chemical compatibility. It reduces liquid contaminants to a level of 15 ppmv or below.
