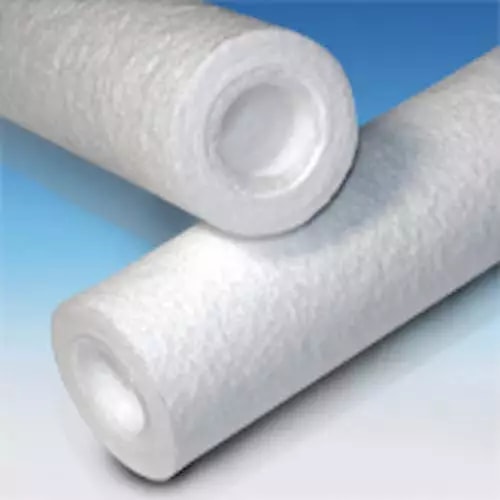

Claris® Depth Filter CLR530M7S

$50.50
Minimum Order Quantity of 12 Items.
Part Number
  • CLR530M7S
Highlights...

Features

  • Media Material: Polypropylene
  • Hardware Material: Polypropylene
  • O-ring/Seal/Gasket Material: Silicone
  • Removal Rating: 5µm
  • Removal Efficiency: nominal
  • Nominal Outer Diameter: 2.5 in 64 mm
  • Nominal Length: 30 in 762 mm
  • Configuration (SOE/DOE/Code7/Code3): M7 - SOE fin end, external 226 O-rings (retrofits other manufacturers’ Code 7) 5M7
  • Maximum Differential Pressure: 2.4 bard
  • Dirt Holding Capacity: 0
The Claris CLR530M7S is a 30-inch, 5 µm polypropylene depth filter with SOE fin end and external 226 O-rings sealed with silicone gaskets. This design retrofits Code 7 housings while delivering reliable fine particle retention and long service life.
