AquaSep® XS Coalescers & Separators LCS2PXSH

$1,645.59
Part Number
  • LCS2PXSH
Highlights...

Features

  • Hardware Material: Epoxy Potted Stainless Steel
  • O-ring/Seal/Gasket Material: Fluoropolymer Elastomer O-Ring
  • Nominal Outer Diameter: 3.75 in (9.53 cm)
  • Nominal Length: 20 in (50.8 cm)
  • Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
  • Maximum Temperature: 60°C (140°F)
  • Separation Level (LL Coalescer): 15ppm (via AquaGlo detection) in hydrocarbon streams with inlet water concentration up to .25%
  • Clean Differential Pressure: 0.17 bar (2 psid)

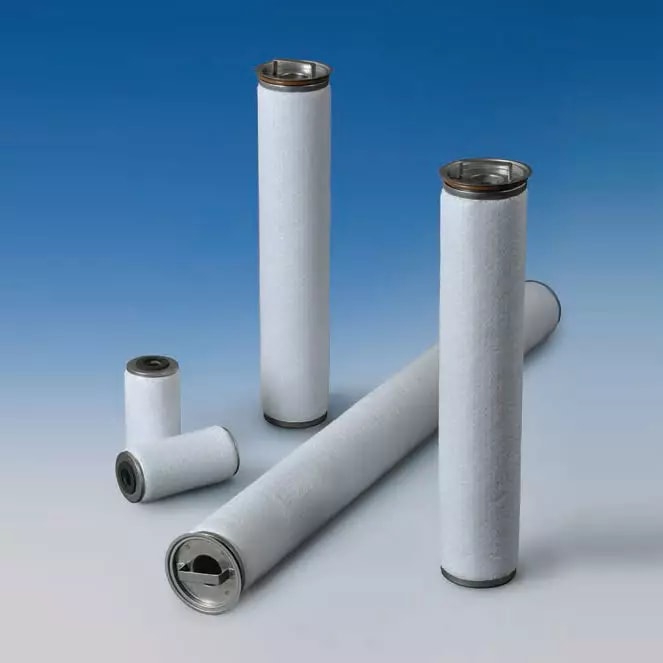

The AquaSep XS LCS2PXSH is a 20-inch liquid-liquid coalescer element engineered to provide high-performance separation with a lower total cost of ownership. Featuring a high-efficiency polymeric medium, this element is highly effective at handling emulsions with very low interfacial tensions, a key advantage over conventional glass fiber coalescers. Its design allows it to handle up to 60% more flow per element, which translates to a more compact system, a smaller physical footprint, and less overall weight. The LCS2PXSH consistently provides superior effluent quality for a range of demanding applications, including the removal of water from refined products and hydrocarbon condensates. This element's ability to maintain high efficiency and handle greater flow rates makes it a reliable and economical choice for numerous liquid-liquid separation processes.
