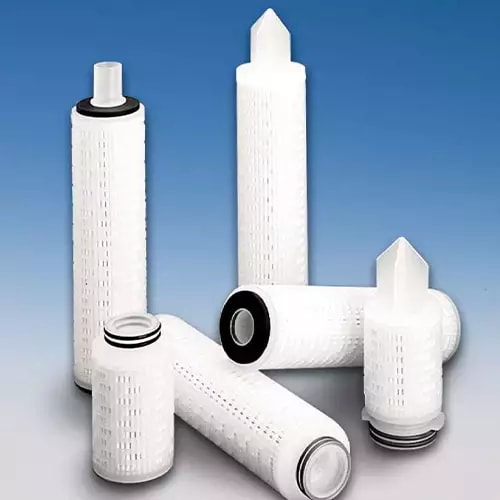

Duo-Fine® II Filter Cartridges DFNT1020UVM3

Call for pricing
Minimum Order Quantity of 12 Items.
Part Number
  • DFNT1020UVM3
Highlights...

Features

  • Media Material: borosilicate microfiberglass with binder
  • Hardware Material: Polypropylene
  • O-ring/Seal/Gasket Material: Fluorocarbon elastomer
  • Removal Rating: 10 µm
  • Removal Efficiency: nominal
  • Nominal Outer Diameter: 2.6 in 66 mm
  • Nominal Length: 20 in 762 mm
  • Configuration (SOE/DOE/Code7/Code3): SOE flat closed end, external 222 O-rings
  • Maximum Differential Pressure: 2.4 bard
  • Dirt Holding Capacity: 0
The DFNT1020UVM3 is a 20-inch Duo-Fine® II filter cartridge with a 10 µm retention rating. It is designed with a SOE (Single Open End) with external 222 O-rings and a fluorocarbon elastomer gasket for a secure seal. The high-capacity pleated design makes it more economical and efficient than traditional depth filters, while providing superior filtration for liquid and gas applications.
