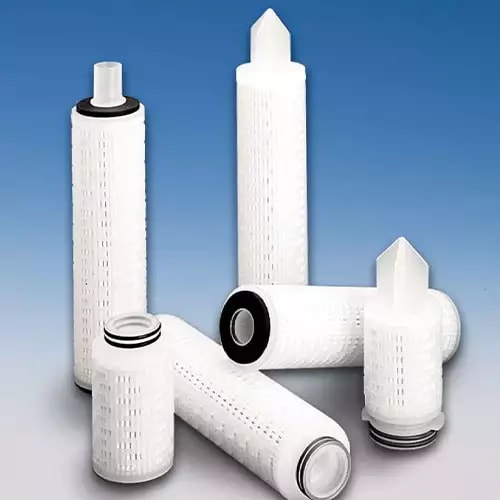

Duo-Fine® II Filter Cartridges DFNT04510UVM3
Overview
Features
- Media Material: borosilicate microfiberglass with binder
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Fluorocarbon elastomer
- Removal Rating: 0.45 µm
- Removal Efficiency: nominal
- Nominal Outer Diameter: 2.6 in 66 mm
- Nominal Length: 10 in 254 mm
- Configuration (SOE/DOE/Code7/Code3): SOE flat closed end, external 222 O-rings (retrofits other manufacturers’ Code 0)3M3
- Maximum Differential Pressure: 2.4 bard
- Dirt Holding Capacity: 0
Description
The DFNT04510UVM3 is a 10-inch Duo-Fine® II filter cartridge rated for 0.45 µm, designed with a SOE (Single Open End) with external 222 O-rings and a fluorocarbon elastomer gasket. Its microfiberglass media provides excellent filtration in both liquid and gas systems. The cartridge is imprinted for easy identification and provides broad chemical compatibility, making it an excellent classifying filter.
