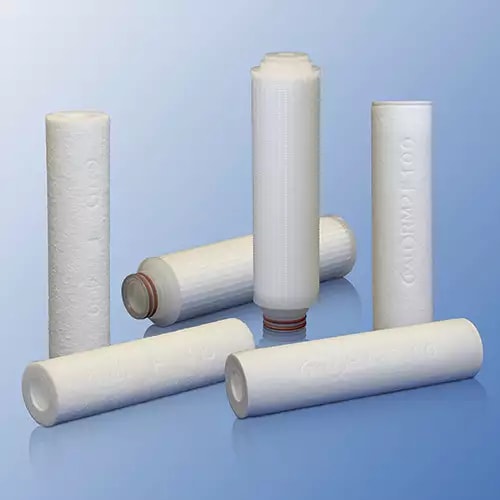

Profile® II Filter Cartridges, R2F100W

$59.61
Part Number
  • R2F100W
Highlights...

Features

  • Media Material: Polypropylene
  • Hardware Material: Polypropylene
  • Removal Rating: 10 µm
  • Removal Efficiency: 99.98 %
  • Nominal Length: 508 mm (20 in)
  • Configuration (SOE/DOE/Code7/Code3): Knife-edge seal
  • Maximum Differential Pressure: 4 bard (60 psid) @ < 30° C (86◦ F)
  • Hot Water Sanitization: 80 °C (176 °F)
The Profile II R2F100W is a 20-inch, double-open-end (DOE) depth filter for general purpose clarification. This RF style cartridge features a 10 µm polypropylene medium, rated at 99.98% efficiency, with a graded-pore structure for high dirt-holding capacity and a long service life. Its fixed-fiber matrix ensures consistent filtration and prevents contaminant unloading. Designed to be installed over a tie-rod assembly, the knife-edge seal provides a positive connection in compatible industrial housings. This filter is an excellent choice for applications like process water filtration and prefiltration.
