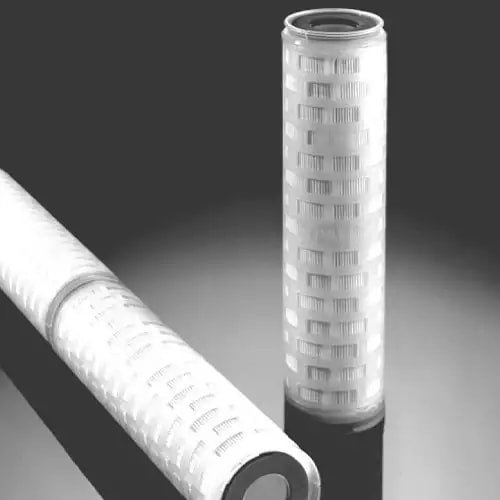

Epocel® Filter Cartridges MCY1001EGH13

Call for pricing
Part Number
  • MCY1001EGH13
Highlights...

Features

  • Media Material: resin impregnated cellulose
  • Hardware Material: polypropylene
  • O-ring/Seal/Gasket Material: Nitrile
  • Removal Rating: 30µm
  • Removal Efficiency: absolute
  • Nominal Outer Diameter: 2 3/4 in 70mm
  • Nominal Length: 10 in 254 mm
  • Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
  • Maximum Temperature: 60°C (140°F)
  • Dirt Holding Capacity: 0
  • Clean Differential Pressure: 0.17 bar (2 psid)
The MCY1001EGH13 is a high-efficiency Epocel filter with epoxy-impregnated cellulose media and an absolute rating of 10 µm. Designed for critical industrial applications, this filter provides consistent and reliable particulate retention, ensuring product quality and protecting downstream equipment. It features a Buna-N gasket for broad compatibility and a robust design for stable performance under pressure.
