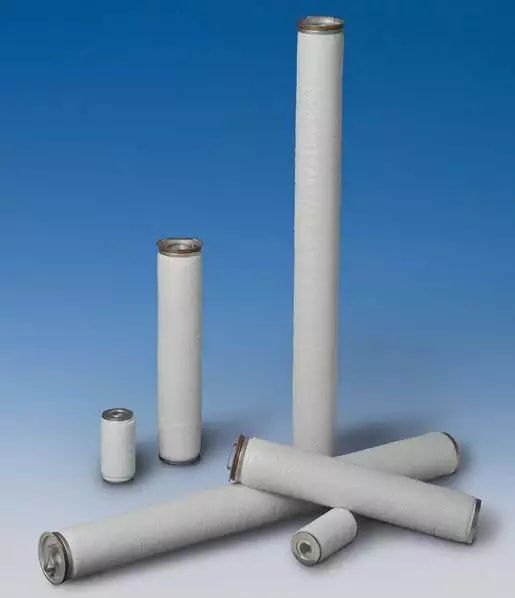

AquaSep® EL Coalescers & Separators LCS4ELBH

$1,081.60
Part Number
  • LCS4ELBH
Highlights...

Features

  • Hardware Material: Epoxy Potted Stainless Steel
  • O-ring/Seal/Gasket Material: Fluoropolymer Elastomer O-Ring
  • Nominal Outer Diameter: 3.75 in (9.53 cm)
  • Nominal Length: 40 in (101.6 cm)
  • Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
  • Maximum Temperature: 60°C (140°F)
  • Separation Level (LL Coalescer): 15ppm (via AquaGlo detection) in hydrocarbon streams with inlet water concentration up to .1%
  • Clean Differential Pressure: 0.17 bar (2 psid)
The AquaSep EL LCS4ELBH is a 40-inch liquid-liquid coalescer element built for high-throughput applications with medium to coarse emulsions and higher solids content. This cost-effective solution utilizes a high-efficiency polymeric medium that excels where conventional glass fiber coalescers and mesh packs fail, particularly in streams with low interfacial tensions. The LCS4ELBH is capable of processing a high volume of fluid while maintaining excellent effluent quality, making it a reliable and more economical option for many liquid-liquid separation systems. It is an ideal choice for challenging applications such as the removal of oil from sour water and the separation of water from hydrocarbon condensates prior to stabilization or pipeline transport. This element's design ensures consistent performance and reduced maintenance, providing a reliable and efficient solution for complex industrial processes.
