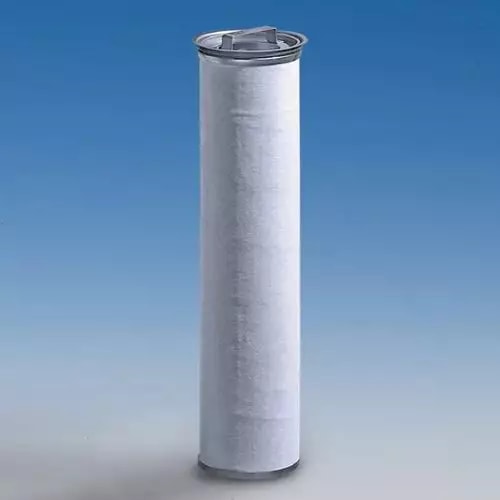

PhaseSep® Coalescers & Separators LCS4H2HH
Overview
Features
- Hardware Material: Fluorocarbon/316 stainless steel
- O-ring/Seal/Gasket Material: Fluoropolymer Elastomer O-Ring
- Nominal Outer Diameter: 3.75 in (9.53 cm)
- Nominal Length: 40 in (101.6 cm)
- Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
- Maximum Temperature: 60°C (140°F)
- Separation Level (LL Coalescer): ≤15ppm free water content
- Clean Differential Pressure: 0.17 bar (2 psid)
Description
The LCS4H2HH is a 40 in polycapped PhaseSep coalescer, chemically resistant due to its fluoropolymer end caps and lack of epoxy. It removes liquid contaminants to a level of 15 ppmv and below and is suited for a wide range of oil, gas, and chemical applications.
