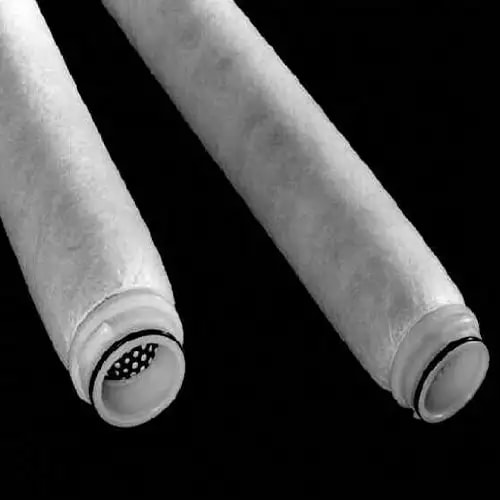

SepraSol™ Plus Coalescers & Separators CS604LGH1
Overview
Features
- Hardware Material: 304 stainless steel
- O-ring/Seal/Gasket Material: PTFE Encapsulated Viton
- Nominal Outer Diameter: 6 in (15.2 cm)
- Nominal Length: 40 in (101.6 cm)
- Maximum Temperature: 82 °C (180 °F)
- Aerosol Removal Rating (LG Coalescer): 99.999% at 0.3 µm per DOP test
- Solids Removal Rating (LG Coalescer): 99.7% for particles >0.3 µm per NaCl test
Description
Handle higher flows with confidence. This six-inch outside diameter SepraSol single open-ended element combines a positive single O-ring seal, a pleated resin-bonded medium, polymer drainage layers, and a stainless steel core to maintain low saturated differential pressure at high loading. Hydrophobic and oleophobic treatment speeds liquid release and quick recovery after slugs. Expect high efficiency removal at 0.3 micrometer and trace downstream liquid levels. Use it to clean fuel gas, protect compressors and burners, minimize foaming in treating towers, and safeguard desiccants.
