PhaseSep® Coalescers & Separators LCS4H2HH1
Overview
Features
- Hardware Material: Fluorocarbon/316 stainless steel
- O-ring/Seal/Gasket Material: Fluoropolymer Encapsulated Teflon
- Nominal Outer Diameter: 3.75 in (9.53 cm)
- Nominal Length: 40 in (101.6 cm)
- Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
- Maximum Temperature: 60°C (140°F)
- Separation Level (LL Coalescer): ≤15ppm free water content
- Clean Differential Pressure: 0.17 bar (2 psid)
Description

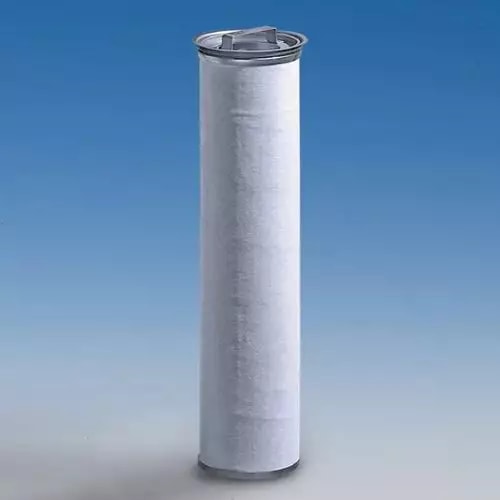

The LCS4H2HH1 is a 40 in polycapped PhaseSep coalescer, offering high chemical resistance due to its fluoropolymer end caps. Designed with a Teflon encapsulated fluoropolymer gasket, it separates emulsions with IFT greater than 0.5 dyne/cm and reduces contaminants to 15 ppmv and below.
