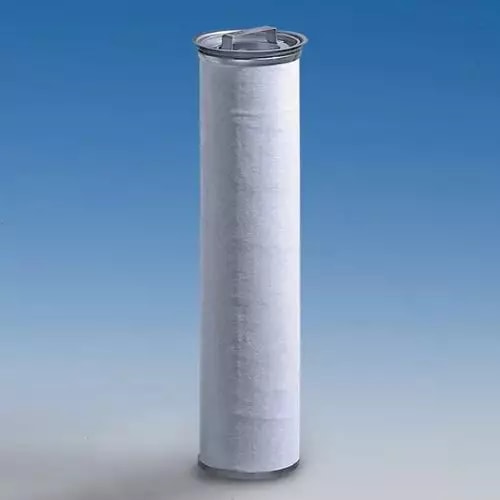

PhaseSep® Coalescers & Separators LCS2H1AH

Call for pricing
Part Number
  • LCS2H1AH
Highlights...

Features

  • Hardware Material: Epoxy Potted 304 Stainless Steel
  • O-ring/Seal/Gasket Material: Fluoropolymer Elastomer O-Ring
  • Nominal Outer Diameter: 3.75 in 9.53 cm
  • Nominal Length: 20 in (50.8 cm)
  • Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
  • Maximum Temperature: 60°C (140°F)
  • Separation Level (LL Coalescer): ≤15ppm free water content
  • Clean Differential Pressure: 0.17 bar (2 psid)
The LCS2H1AH is a 20 in PhaseSep coalescer with a pleated fluoropolymer medium and a Teflon encapsulated fluoropolymer gasket, ensuring broad chemical resistance. It effectively separates liquid/liquid dispersions, reducing contaminants to 15 ppmv or less. Its unique stack design promotes even flow distribution for a smaller assembly size.
