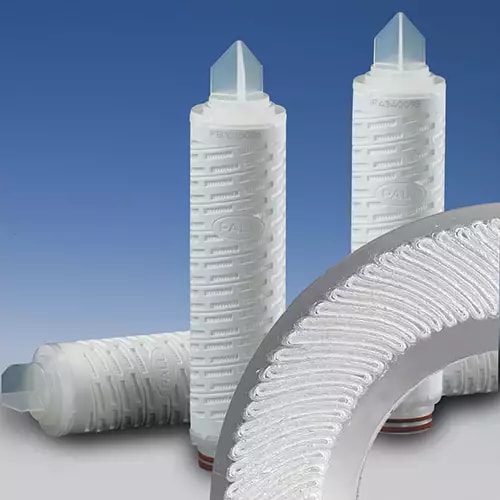

Fuente II Filter Cartridge, AB1FFN7WH4
Overview
Features
- Media Material: Double Layer PES, with built in pre-filtration
- O-ring/Seal/Gasket Material: Ethylene Propylene Rubber
- Removal Rating: 0.2 µm
- Nominal Length: 10 in
- Maximum Differential Pressure: 5 bard @ < 40° C (68◦ F)
- Filter Area: 1.04 m²
- Hot Water Sanitization: 100 hrs @ 85 °C
- Product Use: Pre-Filtration
Description
Designed as a final membrane for bottled water, the AB1FFN7WH4 Fuente II cartridge features a high-area PES membrane with an integrated prefilter layer and Ultipleat construction to deliver high flux at a low pressure drop. The hydrophilic media supports fast wet-out and consistent microbial stabilization. The food-contactâ€"compliant materials and a sanitary Code 7 connection make installation straightforward. Integrity testing is supported, enabling documented verification. Use this 10-inch length for smaller housings or pilot systems where compact size and reliable final membrane performance are required.
