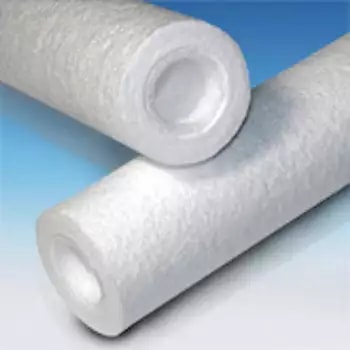

Claris® Filter Cartridge, CLR530M3WS480

$23.31
Minimum Order Quantity of 12 Items.
Part Number
  • CLR530M3WS480
Highlights...

Features

  • Media Material: Polypropylene
  • Hardware Material: Polypropylene
  • O-ring/Seal/Gasket Material: Silicone Elastomer
  • Removal Rating: 5 µm
  • Nominal Length: 762 mm (30 in)
  • Configuration (SOE/DOE/Code7/Code3): SOE - single open end with flat closed end and external 222 O-rings
  • Maximum Differential Pressure: 1.72 bard (25 psid) @ < 60° C (142◦ F)
The Claris CLR530M3WS480 delivers reliable 5-micrometer clarification with a melt-blown polypropylene depth matrix and secure SOE sealing. Multiple fiber zones form a graded-pore profile that traps a wide particle range through the media thickness, limiting early pressure rise. Thermally bonded construction stabilizes retention and reduces media shedding. The all-polypropylene build contains no adhesives or surfactants, supporting broad fluid compatibility. This single-open-end version features a flat closed end with external 222 silicone O-rings for leak-tight installation and repeatable changeouts in compatible housings.
