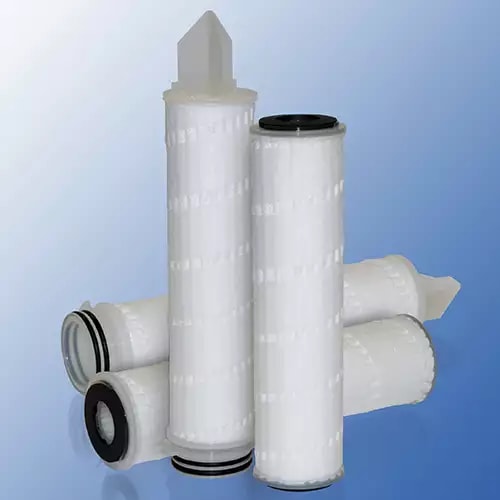

Profile® UP Filter Cartridges, AB4UY4007WH4
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Silicone Elastomer
- Removal Rating: 40 µm
- Removal Efficiency: 1
- Nominal Length: 1016 mm (40 in)
- Configuration (SOE/DOE/Code7/Code3): SOE - single open end with fin end, 2 locking tabs and external 226 O-rings
- Maximum Differential Pressure: 4.1 bard (60 psid) @ < 30° C (86◦ F)
- Hot Water Sanitization: 80 °C (178 °F)
- Steam Sterilizable: 125 °C (257 °F)
Description
When longer runs are the priority, this 40-inch Profile UP UY400 cartridge offers added surface area for fewer changeouts. A fixed-fiber polypropylene medium with laid-over pleats drives a high dirt-holding capacity and robust solids capture at a 40 micron rating. The all-polypropylene construction is broadly compatible with beverage processes and cleaning regimens. A Code 7 fin-end adapter with external 226 O-rings provides secure sealing during hot-water sanitization or steam-in-place. Use it as an upstream clarifier to improve the stability of downstream operations.
