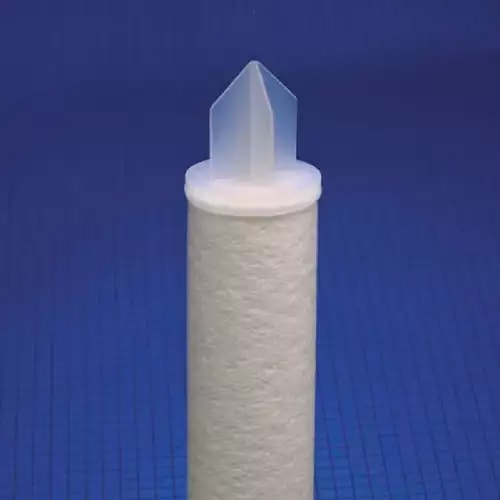

Nexis® Depth Filter NXA540UXK

Call for pricing
Minimum Order Quantity of 12 Items.
Part Number
  • NXA540UXK
Highlights...

Features

  • Media Material: Polypropylene
  • Hardware Material: Polypropylene
  • Removal Rating: 4,1µm
  • Removal Efficiency: absolute
  • Nominal Outer Diameter: 2.5 in 64 mm
  • Nominal Length: 40 in 1016 mm
  • Configuration (SOE/DOE/Code7/Code3): XK - SOE plastic spring assembly, saw cut endXK
  • Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
  • Maximum Temperature: 60°C (140°F)
  • Dirt Holding Capacity: 0
  • Clean Differential Pressure: 0.17 bar (2 psid)
The NXA540UXK is a 40-inch, 5 µm Nexis A depth cartridge featuring an SOE plastic spring assembly with saw‑cut end for specific housing interfaces. CoLD Melt gradient‑pore media enables high dirt capacity with low initial pressure drop, while rigid depth construction maintains efficiency at rising differential pressure.
