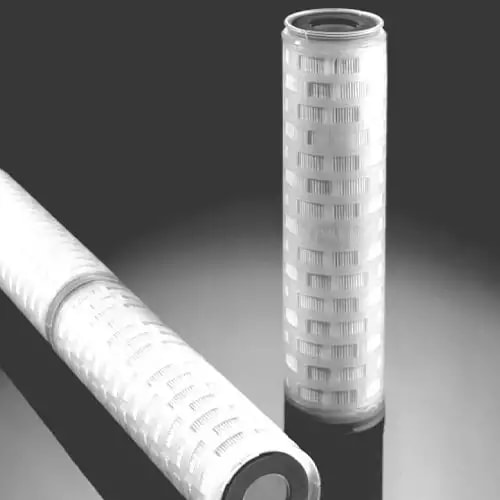

Epocel® Filter Cartridges MCC1401E500H226
Overview
Features
- Media Material: resin impregnated cellulose
- Hardware Material: 316 SS
- O-ring/Seal/Gasket Material: Viton
- Removal Rating: 50µm
- Removal Efficiency: absolute
- Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
- Maximum Temperature: 60°C (140°F)
- Dirt Holding Capacity: 0
- Clean Differential Pressure: 0.17 bar (2 psid)
Description
The MCC1401E500H226 is a 5 µm Epocel filter with a pleated, epoxy-impregnated cellulose media. This robust filter is designed to provide high dirt capacity and consistent particulate retention in a variety of industrial applications. It features a 226 O-ring with a Viton-A gasket, ensuring a secure and reliable seal for effective filtration with aggressive fluids.
