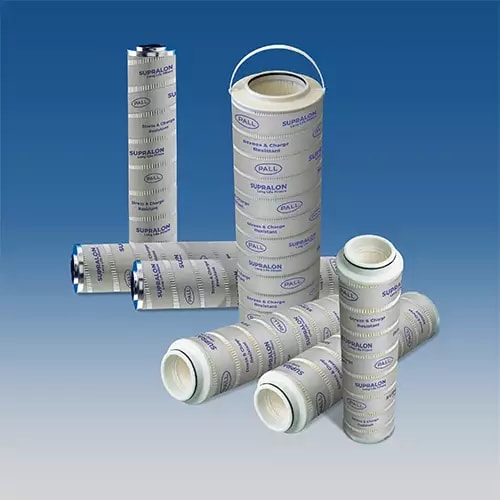

Supralon™ Lube & Hydraulic Elements HC2246FRN6H50
Overview
Features
- Media Material: Glass Fiber
- Hardware Material: Corrosion Protected Carbon Steel
- O-ring/Seal/Gasket Material: Nitrile
- Removal Rating: 7 µm
- Removal Efficiency: Beta 2000
- Nominal Outer Diameter: 3.56 in 9.04 cm
- Nominal Length: 6 in 15.24 cm
- Dirt Holding Capacity: 0
- Product Use: Lube and Hydraulic Oil Filtration
Description
The Supralon filter element HC2246FRN6H50 is a 6-inch, standard-collapse cartridge designed for hydraulic and lubrication fluids. It provides a 7 µm removal rating at Beta 2000, delivering excellent contaminant control. Proprietary filter media and construction, featuring spiral-wrapped pleats and fixed tapered pores, give it high dirt-holding capacity and consistent performance over its service life. An outer anti-static wrap dissipates any static charge, enhancing reliability. This filter element offers long life and fewer replacements, serving as a direct Pall Ultipor/Coralon upgrade.
