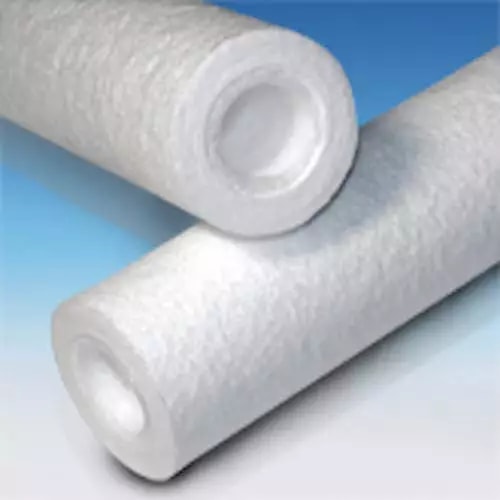

Claris® Depth Filter CLR540M8E

$55.95
Minimum Order Quantity of 12 Items.
Part Number
  • CLR540M8E
Highlights...

Features

  • Media Material: Polypropylene
  • Hardware Material: Polypropylene
  • O-ring/Seal/Gasket Material: EPDM
  • Removal Rating: 5µm
  • Removal Efficiency: nominal
  • Nominal Outer Diameter: 2.5 in 64 mm
  • Nominal Length: 40 in 1016 mm
  • Configuration (SOE/DOE/Code7/Code3): M8 - SOE fin end, external 222 O-rings (retrofits other manufacturers’ Code 5) 5M8
  • Maximum Differential Pressure: 2.4 bard
  • Dirt Holding Capacity: 0
The Claris CLR540M8E is a 40-inch, 5 µm polypropylene depth filter designed with an SOE fin end and external 222 O-rings with EPDM gaskets. It retrofits Code 5 housings while providing reliable solids retention and long service intervals.
