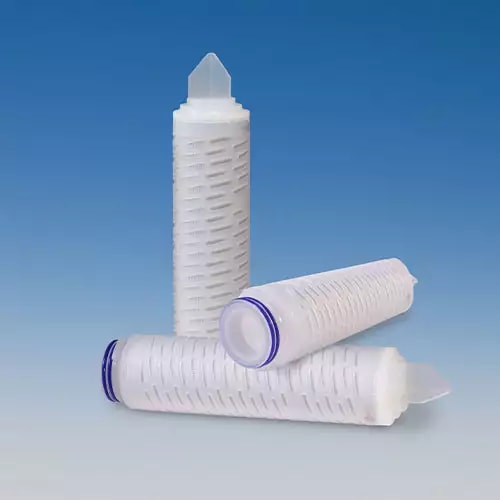

PREcart PP II Filter Cartridges, 499A220W072SP
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Silicone Elastomer
- Removal Rating: 20 µm
- Removal Efficiency: 1
- Nominal Length: 508 mm (20 in)
- Configuration (SOE/DOE/Code7/Code3): SOE – single open end with fin end, 2 locking tabs and external 226 o-rings
- Maximum Differential Pressure: 5 bard (72 psid) @ < 25° C (77◦ F)
- Hot Water Sanitization: 90 °C (194 °F)
Description
For coarse filtration and low initial pressure drop, this 20 µm PREcart PP II uses pleated graded-density polypropylene media to capture large particulates upstream of polish or final stages. The 20-inch, Code 07 SOE element features a fin end with two locking tabs and external 226 O-rings for reliable sealing under thermal cycles. All-polypropylene construction delivers broad chemical compatibility, while hot-water and steam tolerance support hygienic operation. Backflush capability enables regeneration to lower operating cost and extend service intervals. Serialized labeling aids traceability.
