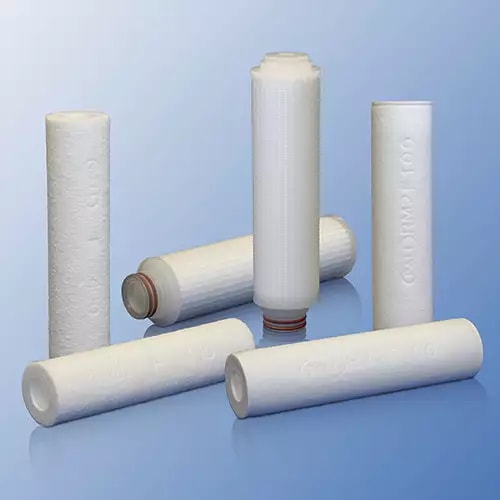

Profile® II Filter Cartridges, AB3Y0057WH4

$560.39
Part Number
  • AB3Y0057WH4
Highlights...

Features

  • Media Material: Polypropylene
  • Hardware Material: Polypropylene
  • O-ring/Seal/Gasket Material: Silicone Elastomer
  • Removal Rating: 0.5 µm
  • Removal Efficiency: 99.98 %
  • Nominal Length: 762 mm (30 in)
  • Configuration (SOE/DOE/Code7/Code3): SOE - single open end with fin end, 2 locking tabs and external 226 O-rings
  • Maximum Differential Pressure: 4 bard (60 psid) @ < 30° C (86◦ F)
  • Hot Water Sanitization: 80 °C (176 °F)
The Profile II AB3Y0057WH4 is a high-efficiency depth filter designed for superior clarification and particle removal in food and beverage applications. This 30-inch cartridge features a melt-blown polypropylene medium with a 0.5 µm removal rating at 99.98% efficiency, ideal for fine filtration. The fixed-fiber matrix with a graded-pore structure provides a high contaminant holding capacity and prevents media migration. This single-open-end element is configured with a Code 7 adapter (fin end with 226 O-rings) and silicone O-rings for a secure, sanitary fit. The cartridge can be sanitized with hot water for repeated use.
