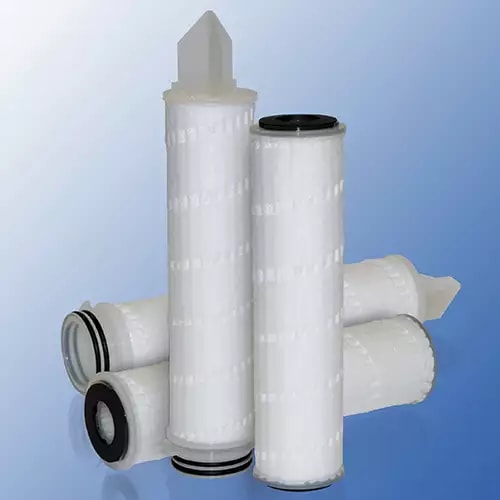

Profile® UP Filter Cartridges, AB3UY0457WH4
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Silicone Elastomer
- Removal Rating: 4.5 µm
- Removal Efficiency: 1
- Nominal Length: 762 mm (30 in)
- Configuration (SOE/DOE/Code7/Code3): SOE - single open end with fin end, 2 locking tabs and external 226 O-rings
- Maximum Differential Pressure: 4.1 bard (60 psid) @ < 30° C (86◦ F)
- Hot Water Sanitization: 80 °C (178 °F)
- Steam Sterilizable: 125 °C (257 °F)
Description
Target medium-load haze with this 30-inch Profile UP prefilter in the UY045 grade, rated at 4.5 micron with 99.98 percent efficiency. Its pleated, depth-style medium uses a continuously varying pore structure to stage particle capture, balancing a high dirt-holding capacity with a low pressure drop. The all-polypropylene construction is thermally bonded to minimize extractables and resist common cleaning chemistries. Consistent sealing is ensured by the Code 7 SOE adapter, even after hot-water or steam-in-place procedures. This filter helps protect final filters and reduce changeouts, promoting steady line efficiency.
