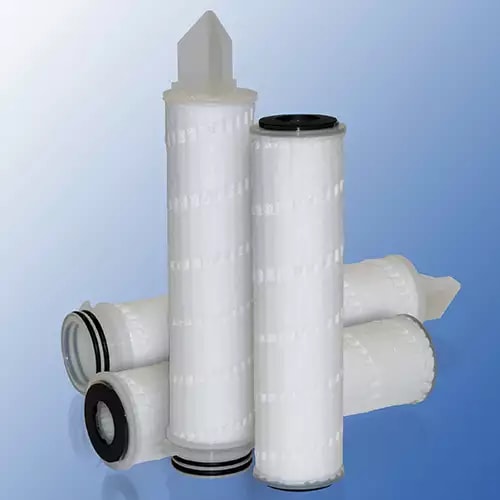

Profile® UP Filter Cartridges, AB3UY0207WH4

Call for pricing
Minimum Order Quantity of 2 Items.
Part Number
  • AB3UY0207WH4
Highlights...

Features

  • Media Material: Polypropylene
  • Hardware Material: Polypropylene
  • O-ring/Seal/Gasket Material: Silicone Elastomer
  • Removal Rating: 2 µm
  • Removal Efficiency: 1
  • Nominal Length: 762 mm (30 in)
  • Configuration (SOE/DOE/Code7/Code3): SOE - single open end with fin end, 2 locking tabs and external 226 O-rings
  • Maximum Differential Pressure: 4.1 bard (60 psid) @ < 30° C (86◦ F)
  • Hot Water Sanitization: 80 °C (178 °F)
  • Steam Sterilizable: 125 °C (257 °F)
Built for beverage prefiltration, this 30-inch Profile UP element combines a pleated depth matrix with a progressive pore-structure to load more particles before the differential pressure rises. The UY020 grade delivers 2.0 micron removal at 99.98 percent efficiency, supporting reliable clarification ahead of final membranes. Its all-polypropylene media and hardware are thermally bonded for clean performance, and a Code 7 SOE adapter with a fin end and external 226 O-rings provides a positive seal in sanitary housings. For hygienic operation, the cartridge is hot-water sanitizable and steam-sterilizable, enabling repeatable reuse. Use this grade for tighter prefiltration to protect downstream membranes in beer, wine, or cider.
