$864.07

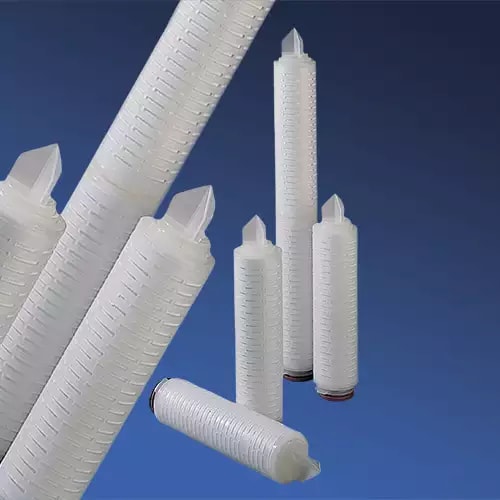

  • AB2PFR7WH4

Overview

Features

  • Media Material: Double Layer PTFE
  • O-ring/Seal/Gasket Material: Silicone Elastomer
  • Removal Rating: 0.2 µm
  • Nominal Length: 20 in
  • Maximum Differential Pressure: 5.23 bard @ < 20° C (68◦ F)
  • Filter Area: 1.6 m²
  • Integrity Testable: 100% bubble test

Description

For higher flow points, the AB2PFR7WH4 scales Emflon PFRW performance to a 20-inch length. Its hydrophobic double-layer 0.2 µm PTFE membrane provides validated retention and resists wetting, while high-area pleating lowers differential pressure. The robust construction supports multi-cycle steam-in-place in forward and reverse directions and enables Water Intrusion Test (WIT) integrity checks to confirm readiness after sterilization. Use this element on tank vents, CO2 lines, and utility headers to extend service life between changeouts. Need more information? View all details for this Product Family!
