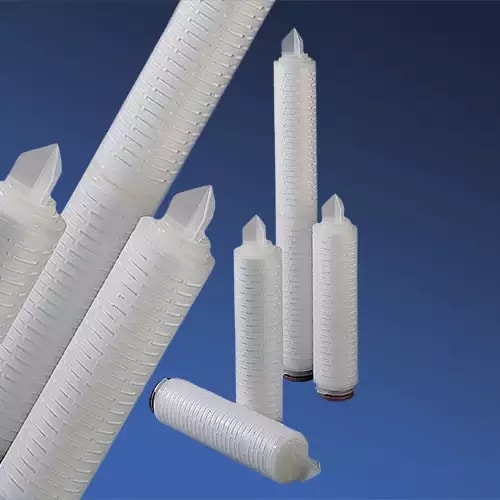

Emflon® PFRW Filter Cartridge, AB1PFR8WH4
Overview
Features
- Media Material: Double Layer PTFE
- O-ring/Seal/Gasket Material: Silicone Elastomer
- Removal Rating: 0.2 µm
- Nominal Length: 10 in
- Maximum Differential Pressure: 5.23 bard @ < 20° C (68◦ F)
- Filter Area: 8000 cm²
- Integrity Testable: 100% bubble test
- Product Use: Air, Gas, and Vent Filtration
Description
The AB1PFR8WH4 combines a hydrophobic double-layer 0.2 µm PTFE membrane with a code-8 sanitary connection to fit specified housings. The pleated media deliver a high effective area and a low pressure drop, helping maintain airflow on sterile vents and utility lines. This element tolerates multi-cycle steam-in-place in both flow directions and can be integrity tested by the Water Intrusion Test (WIT) for quick, auditable checks. Choose this configuration where code-8 fitment is required.
