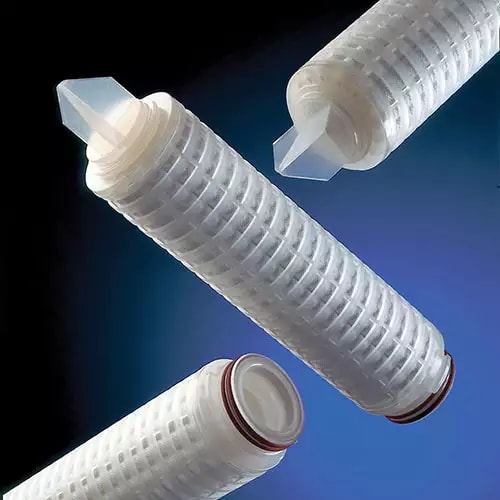

Profile® Star Filter Cartridge, AB1A0507WH4

$264.94
Part Number
  • AB1A0507WH4
Highlights...

Features

  • Media Material: Polypropylene
  • Hardware Material: Polypropylene
  • O-ring/Seal/Gasket Material: Silicone Elastomer
  • Removal Rating: 5 µm
  • Removal Efficiency: 99.98 %
  • Nominal Length: 254 mm (10 in)
  • Configuration (SOE/DOE/Code7/Code3): SOE - single open end with fin end, 2 locking tabs and external 226 O-rings
  • Maximum Differential Pressure: 5 bard (72 psid) @ < 50° C (122◦ F)
  • Hot Water Sanitization: 80 °C (176 °F)
  • Integrity Testable: No bubble test
The Profile Star AB1A0507WH4 is a 10-inch pleated depth filter designed for high-efficiency particle removal in food and beverage applications. It combines a 5 µm polypropylene medium, rated at 99.98% efficiency, with a star-shaped pleat geometry to increase the effective filtration area and extend service life. The graded-pore structure is highly effective at removing both hard particles and soft contaminants like gels. The fixed-fiber matrix ensures a stable structure and consistent filtrate quality. This single-open-end element is configured with a Code 7 adapter and silicone O-rings for a reliable seal in sanitary housings. Need more information? View all details for this Product Family!
