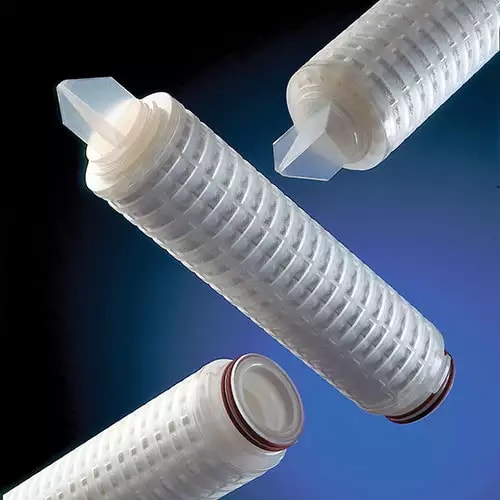

Profile® Star Filter Cartridge, AB1A0307WH4

Call for pricing
Part Number
  • AB1A0307WH4
Highlights...

Features

  • Media Material: Polypropylene
  • Hardware Material: Polypropylene
  • O-ring/Seal/Gasket Material: Silicone Elastomer
  • Removal Rating: 3 µm
  • Removal Efficiency: 99.98 %
  • Nominal Length: 254 mm (10 in)
  • Configuration (SOE/DOE/Code7/Code3): SOE - single open end with fin end, 2 locking tabs and external 226 O-rings
  • Maximum Differential Pressure: 5 bard (72 psid) @ < 50° C (122◦ F)
  • Hot Water Sanitization: 80 °C (176 °F)
  • Integrity Testable: No bubble test
The Profile Star AB1A0307WH4 is a 10-inch pleated depth filter that provides reliable particle and gel removal. It features a 3 µm polypropylene medium, rated at 99.98% efficiency, with a graded-pore structure and a unique star pleat geometry that maximizes surface area for a long service life. This design offers a low pressure drop while providing excellent removal of soft contaminants like gels. The all-polypropylene construction is free of adhesives or surfactants. This cartridge has a Code 7 adapter (fin end with 226 O-rings) and silicone O-rings for a secure, sanitary installation. Need more information? View all details for this Product Family!
