Overview

Features

  • Media Material: Cellulose
  • Hardware Material: Polypropylene
  • O-ring/Seal/Gasket Material: Fluorocarbon
  • Nominal Outer Diameter: 12 in 30.5 cm
  • Dirt Holding Capacity: 0

Description

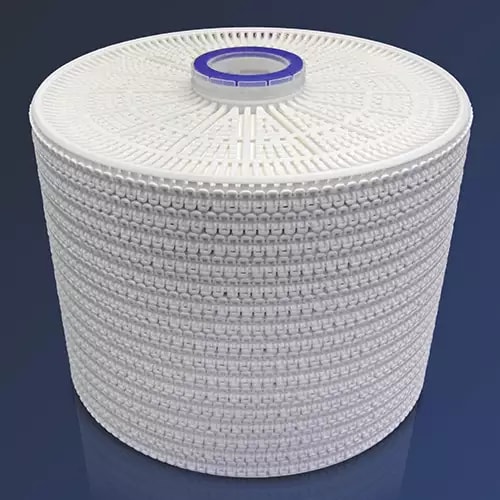

The SUPRAdisc II 7008329 is a single-layer, 12 inch module that pairs ME30 sheet depth media with Pall’s enclosed, double separator construction for consistent clarification in a compact format. Inside and outside separators support the sheet on both sides and route flow evenly across the surface, which helps prevent media blinding and keeps the full filtration area active throughout sanitization and operation. The rigid polypropylene cage and welded tabs create a dimensionally stable block that tolerates handling and allows hygienic, closed filtration with minimal operator exposure. This model provides about 1.8 m² of area and uses a flat gasket adapter with a fluorocarbon elastomer seal for a positive seat and broad chemical range. SUPRAdisc II modules can be forward rinsed and regenerated by backflushing to increase total throughput between changeouts. Manufactured under ISO 9001 quality systems with food contact compliance available, the platform delivers predictable performance, safer changeovers, and reliable clarity across beverage and specialty-process duties where single-grade sheet depth filtration is preferred.
