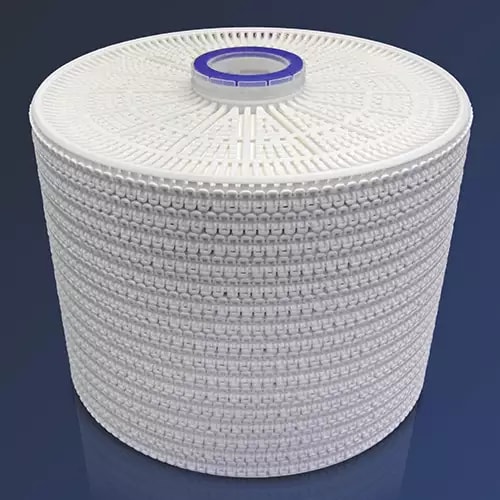

SUPRAdisc™ II Sheet Depth Filter Modules 7008331

The SUPRAdisc II 7008331 combines ME90 sheet depth media with Pall’s robust, enclosed separator system to simplify handling and keep performance consistent from batch to batch. Inside and outside separators support the sheet and maintain spacing, so sheet surfaces do not contact each other and the full filtration area stays productive through thermal cycles and long campaigns. A rigid polypropylene cage with welded lugs forms a stable block that installs cleanly and resists deformation. This single-layer, 12 inch module provides about 1.8 m² of area and uses a flat gasket with a fluorocarbon elastomer seal for a secure, leak-tight seat. SUPRAdisc II modules can be forward rinsed and regenerated by backflushing to raise total throughput. Manufactured under ISO 9001 quality systems with food contact compliance available, the design delivers hygienic sheet filtration, shorter changeovers, and predictable clarity across beverage and specialty-process operations.
