$25.05
Minimum Order Quantity of 12 Items.
  • CLR530M7WS480

Overview

Features

  • Media Material: Polypropylene
  • Hardware Material: Polypropylene
  • O-ring/Seal/Gasket Material: Silicone Elastomer
  • Removal Rating: 5 µm
  • Nominal Length: 762 mm (30 in)
  • Configuration (SOE/DOE/Code7/Code3): SOE - single open end with fin end, 2 locking tabs and external 226 O-rings
  • Maximum Differential Pressure: 1.72 bard (25 psid) @ < 60° C (142◦ F)

Description

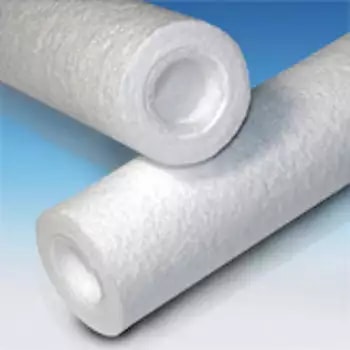

Built for day-to-day clarification, the Claris CLR530M7WS480 combines graded-pore melt-blown depth media with secure SOE fin-end sealing. The polypropylene matrix captures contaminants throughout the media to maintain stable differential pressure as solids accumulate. Thermally bonded fibers help prevent unloading under cycling. With an all-polypropylene construction free of adhesives or surfactants, the element provides broad compatibility for food and beverage service. The single-open-end fin end uses external 226 silicone O-rings and locking tabs to ensure positive seating and quick changeouts in proper housings.
