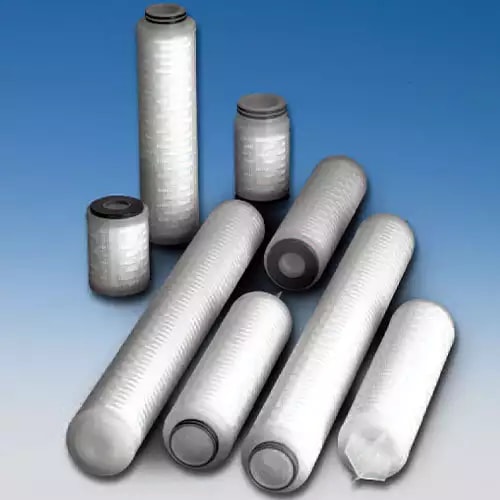

Poly-Fine® II Filter Cartridges PFT320UVM3
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Fluorocarbon elastomer
- Removal Rating: 3µm
- Removal Efficiency: Nominal
- Nominal Outer Diameter: 2.6 in 66 mm
- Nominal Length: 20 in 508 mm
- Configuration (SOE/DOE/Code7/Code3): SOE flat closed end, external 222 O-rings (retrofits other manufacturers’ Code 0)3M3
- Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
- Maximum Temperature: 60°C (140°F)
- Dirt Holding Capacity: 0
- Clean Differential Pressure: 0.17 bar (2 psid)
- Product Use: Pre-Filtration
Description
The PFT320UVM3 is a 20-inch, 3- µm Poly-Fine II cartridge for reliable fine particulate control. Built with all polypropylene construction, it provides absolute retention and chemical resistance. Its M3 configuration with flat closed end and external 222 O-rings, combined with a fluorocarbon elastomer gasket, ensures durable sealing in industrial applications.
