$198.84
  • PFT1030USM7W480

Overview

Features

  • Media Material: Polypropylene
  • Hardware Material: Polypropylene
  • O-ring/Seal/Gasket Material: Silicone Elastomer
  • Removal Rating: 10 µm
  • Nominal Outer Diameter: 2.6 in
  • Nominal Length: 762 mm (30 in)
  • Configuration (SOE/DOE/Code7/Code3): SOE – single open end with fin end, 2 locking tabs, and external 226 O-rings
  • Maximum Differential Pressure: 4.8 bard (70 psid) @ 20°C (68°F)
  • Hot Water Sanitization: 82°C (180°F) @ 1 bar (15 psig)
  • Integrity Testable: No bubble test
  • Product Use: Pre-Filtration

Description

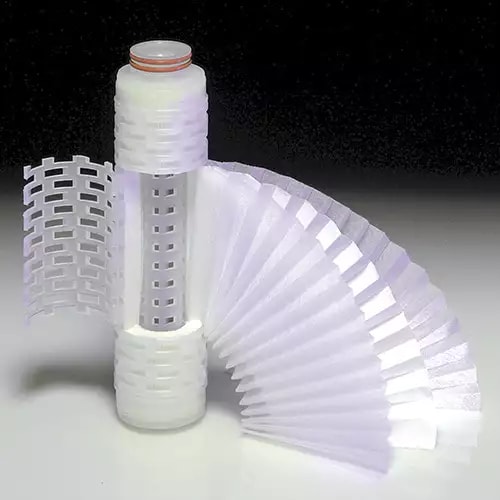

Extend run length without sacrificing clarity. The PFT1030USM7W480 pairs a 10 µm rating with a high-area pleated depth matrix to capture particulate efficiently while holding a low clean pressure drop. All polypropylene construction provides broad fluid compatibility and helps minimize extractables. A single open end (SOE) fin end with external 226 O-rings and silicone seals creates a rapid, positive seal in standard housings for leak-tight starts. Manufactured in a controlled environment under ISO 9001 quality systems, the element is designed for consistent, lot-to-lot performance and can be hot-water sanitized between campaigns. Choose this 30-inch format to reduce changeouts and protect downstream membranes, valves, and instruments in beverage polishing, plant utilities, and light chemical processes.
