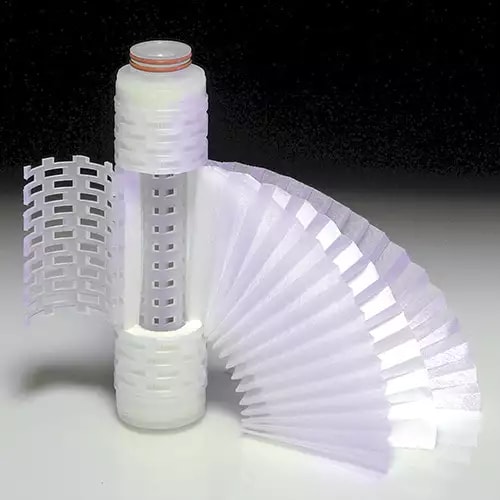

Poly-Fine® II Filter Cartridge, PFT0830USM7W480
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Silicone Elastomer
- Removal Rating: 0.8 µm
- Nominal Outer Diameter: 2.6 in
- Nominal Length: 762 mm (30 in)
- Configuration (SOE/DOE/Code7/Code3): SOE – single open end with fin end, 2 locking tabs, and external 226 O-rings
- Maximum Differential Pressure: 4.8 bard (70 psid) @ 20°C (68°F)
- Hot Water Sanitization: 82°C (180°F) @ 1 bar (15 psig)
- Integrity Testable: No bubble test
- Product Use: Pre-Filtration
Description
The PFT0830USM7W480 combines 0.8 µm retention with a high-area pleated depth media pack to give steady performance and long life. All-polypropylene construction provides broad chemical compatibility and low extractables, while the uniform pore structure supports reproducible particle control. The single open end (SOE) fin end with external 226 O-rings in silicone seals quickly and securely in standard housings, helping to minimize downtime at changeout. Elements are produced in a controlled environment under ISO 9001 quality systems and can be sanitized with hot water as part of routine maintenance.
