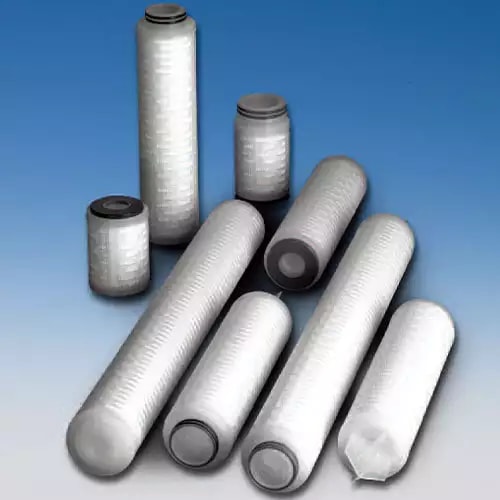

Poly-Fine® II Filter Cartridges PFT04530UFM3
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: FEP encapsulated fluorocarbon elastomer (O-rings)F
- Removal Rating: 0,45µm
- Removal Efficiency: Nominal
- Nominal Outer Diameter: 2.6 in 66 mm
- Nominal Length: 30 in 762 mm
- Configuration (SOE/DOE/Code7/Code3): SOE flat closed end, external 222 O-rings (retrofits other manufacturers’ Code 0)3M3
- Maximum Differential Pressure: 2.4 bard
- Dirt Holding Capacity: 0
- Clean Differential Pressure: 0.17 bar (2 psid)
- Product Use: Pre-Filtration
Description
The PFT04530UFM3 is a 30-inch Poly-Fine II filter cartridge with a 0.45 µm removal rating. It is built with an all-polypropylene body and is free of adhesives for high purity. The M3 end configuration with external 222 O-rings and FEP encapsulated fluorocarbon elastomer gasket provides a secure seal and robust chemical compatibility for demanding applications.
