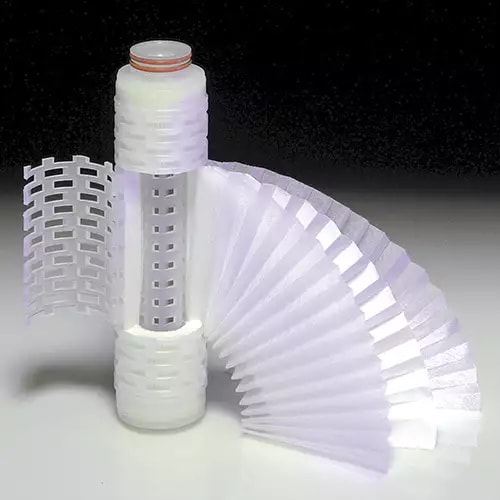

Poly-Fine® II Filter Cartridge, PFT04510USM7W480
Overview
Features
- Media Material: Polypropylene
- Hardware Material: Polypropylene
- O-ring/Seal/Gasket Material: Silicone Elastomer
- Removal Rating: 0.45 µm
- Nominal Outer Diameter: 2.6 in
- Nominal Length: 254 mm (10 in)
- Configuration (SOE/DOE/Code7/Code3): SOE – single open end with fin end, 2 locking tabs, and external 226 O-rings
- Maximum Differential Pressure: 4.8 bard (70 psid) @ 20°C (68°F)
- Hot Water Sanitization: 82°C (180°F) @ 1 bar (15 psig)
- Integrity Testable: No bubble test
- Product Use: Pre-Filtration
Description
The PFT04510USM7W480 is a versatile 0.45 µm pleated depth cartridge designed to balance fine clarification with a compact size. All-polypropylene construction and a consistent pore structure support reliable removal of non-deformable particles, while a high-area format keeps initial pressure drop low and dirt capacity high. The single open end (SOE) fin end with external 226 O-rings and silicone sealing allows for fast changeouts and a tight seat in standard housings. Manufactured in a controlled environment under an ISO 9001 quality system, each element offers reproducible performance and can be sanitized with hot water between campaigns.
