Duo-Fine® II Filter Cartridges PFPT840UTM7CA
Overview
Features
- Media Material: Polyester
- Hardware Material: Polyester
- O-ring/Seal/Gasket Material: FEP encapsulated Silicone
- Removal Rating: 8µm
- Removal Efficiency: nominal
- Nominal Outer Diameter: 2.5 in 6.4 cm
- Nominal Length: 40 in 1016 mm
- Maximum Differential Pressure: 1.03 bar (15 psid) 3.5 bar (50 psid)
- Maximum Temperature: 60°C (140°F)
- Dirt Holding Capacity: 0
- Clean Differential Pressure: 0.17 bar (2 psid)
Description

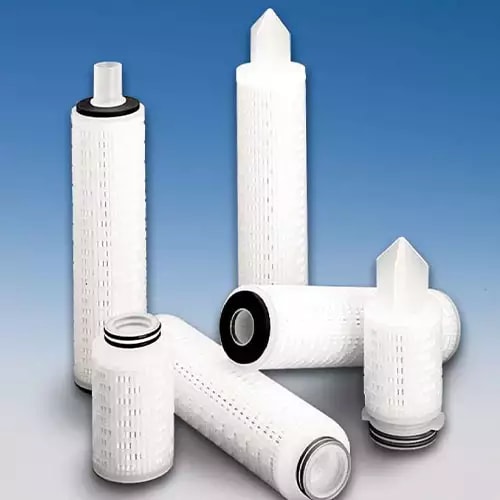

The PFPT840UTM7CA is a 40-inch Duo-Fine® II pleated filter cartridge with an 80 µm retention rating. It is designed with a PTFE gasket for excellent sealing and a core for a wide range of temperature compatibilities. Its high-surface-area media and robust construction provide reliable filtration performance and long service life, making it a dependable choice for high-flow applications.
